Active front-loaded subwoofer system
1 x 18 DAS 18FW loudspeaker
Class D amplifier 2000 Wpeak
Digital signal processing (DSP)
Unique Deep-Loud bass EQ switch
Variable low-pass filter 80 Hz-125 Hz
LED ON/OFF switch on backplate
Top located pole mount socket

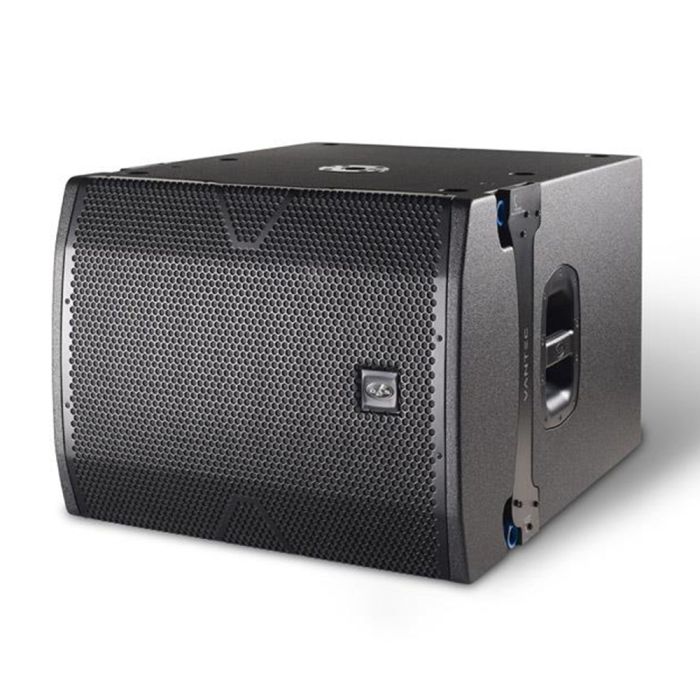

The Vantec-118A is an active front loaded bass system which has been designed specifically for use with the Vantec-20A curved source line array. Compact in size; the unit can be flown in arrays or linked together in ground stacks thanks to the D.A.S. Click-Lock rigging system which is compatible with the Vantec-20A.
The electronics package includes a 2000 Wpeak Class D amplifier and 24-bit high-end DSP for exceptional audio reproduction. A unique Deep-Loud EQ switch allows users to tailor the bass output to provide a low subwoofer type response using the Deep setting or a louder hard hitting performance in the Loud setting. On the rear panel; controls can be found for gain; polarity and a continually variable low-pass filter which ranges from 80 Hz to 125 Hz. The Vantec-118A is phase response coherent with the other Vantec Series active tops such as the Vantec-20A offering precise alignment without the need of an external DSP.
Nominal LF Amplifier Power: 2000 Wpeak
Frequency Range (-10 dB): 35 Hz - 125 Hz
Rated Peak SPL at 1 m: 134 dB
Connectors: INPUT: 2 x Female XLR LOOP THRU: 2 x Male XLR AC INPUT: 1 x powerCON AC OUTPUT: 1 x powerCON
AC Requirements: 115 V, 4.4 A, 50 Hz/60 Hz 230 V, 2.2 A, 50 Hz/60 Hz
Enclosure Material: Birch Plywood
