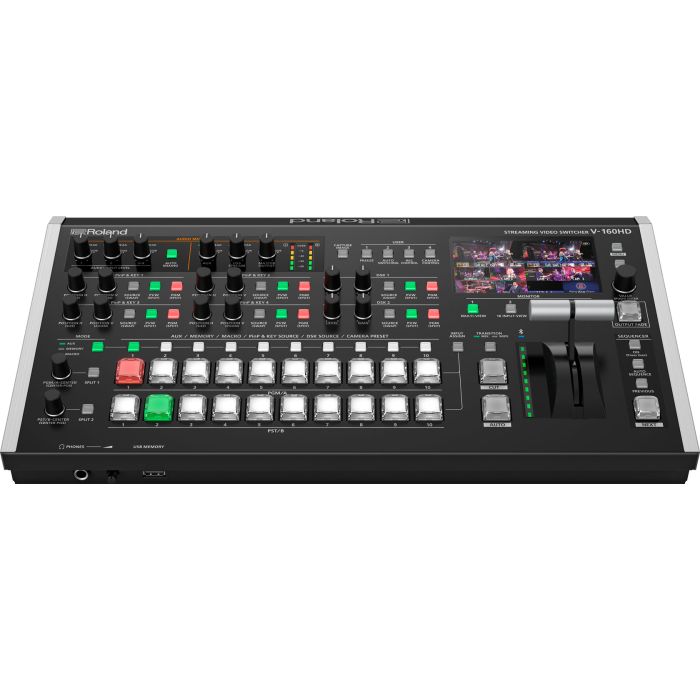

Roland V-160HD Hybrid Event Switcher - 16-Input SDI/HDMI Video Switcher
$5,349.00
The V‑160HD sets a new benchmark for hybrid event switching, combining a powerful 16‑input video switcher with a professional audio mixer and advanced automation. With eight SDI and eight HDMI inputs, you can connect a wide range of cameras and computers, while seven configurable outputs provide program, sub‑program, preview and multiple auxiliary feeds. The eight‑layer effects engine includes a 16‑slot still store, macros and sequenced cues to handle complex productions with ease.
Pickup is available in 1 stores
iHomiLA
821 S Los Angeles St, Los Angeles, 90014
United States
Pickup available
1
pcs
In stock
Roland
V-160HD Hybrid Event Switcher
Item #: V-160HD | UPC: TBD
The Roland V-160HD Hybrid Event Switcher is a professional all-in-one video and audio production hub designed for live events, hybrid conferences, and streaming applications. Combining eight HDMI inputs and eight SDI inputs, it supports simultaneous multi-format workflows with flexible scaling and routing for both in-room screens and online viewers. Its advanced eight-layer video effects engine delivers powerful picture-in-picture, keying, logo overlays, and transitions for broadcast-quality production. Integrated USB 3.0 streaming output lets you connect directly to computer platforms like Zoom, Microsoft Teams, and YouTube Live without additional hardware. Onboard audio mixing, with 40 channels and high-quality DSP, ensures polished sound control for multiple microphones, media sources, and embedded audio. The intuitive hardware interface, motorized faders, and touchscreen control provide fast operation, while remote control options via LAN or the free V-160HD RCS software enhance flexibility in any environment.
The V-160HD bridges in-person and online production with multi-format flexibility, real-time streaming, and broadcast-grade creative tools—all in a single desktop unit.
Key Features
- 16 total video inputs: 8 HDMI + 8 SDI with flexible crosspoint routing
- Eight-layer video effects engine with PiP, keys, transitions, and logos
- Native USB 3.0 output for direct streaming at 1080p/60
- Integrated 40-channel digital audio mixer with high-quality DSP
- Motorized faders, color touchscreen, and direct hardware buttons for fast control
- Remote operation via LAN and V-160HD RCS software
- Supports simultaneous live, hybrid, and online production
Specifications
Video Inputs
8× HDMI, 8× SDI (auto-scaling on selected inputs)
Video Outputs
2× HDMI, 2× SDI, 1× USB 3.0 stream output
Resolution Support
Up to 1080p/60
Audio Mixer
40-channel digital audio mixer with EQ and effects
Video Effects
8-layer composition: PiP, DSK, chroma/luma keys, transitions, logos
Streaming Output
USB 3.0 (UVC/UAC) for plug-and-play live streaming
Control Interfaces
LAN, USB, RS-232, iPad/PC software control
Display
Color LCD touchscreen with real-time monitoring
Dimensions (W×D×H)
15.3″ × 9.8″ × 3.4″ (approx.)
Weight
≈ 6.2 lbs (2.8 kg)
