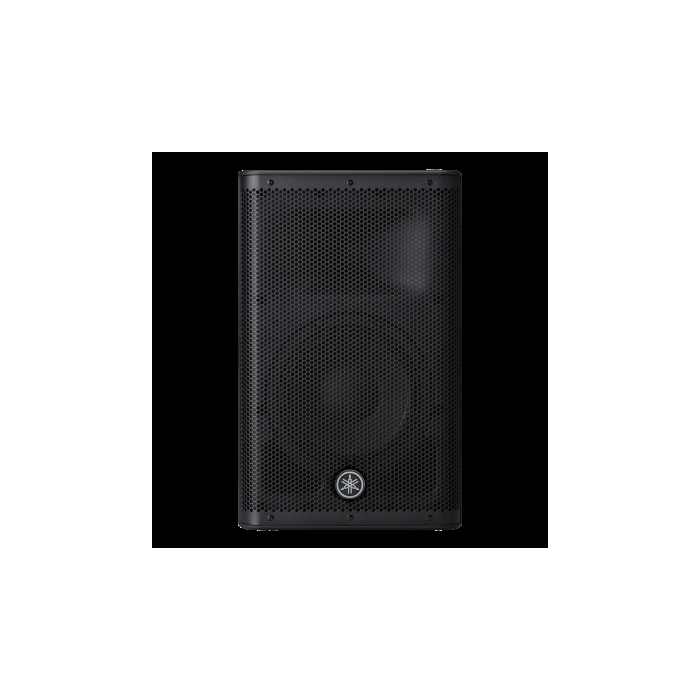

Yamaha DXR10MKII Powered Speaker, 1100W, 10" LF,1.75" HF Compression Driver
$814.99
Pickup is available in 1 stores
iHomiLA
821 S Los Angeles St, Los Angeles, 90014
United States
Pickup available
4
pcs
In stock
Yamaha
DXR10 MKII Powered Speaker – 10" LF / 1.75" HF Compression Driver
Item #: YADXR10MKII | 1100W Peak Output
The Yamaha DXR10 MKII is a compact, high-output, two-way powered loudspeaker that delivers touring-grade clarity and punch in a portable cabinet. Its bi-amplified Class-D module powers a robust 10" low-frequency driver and a 1.75" neodymium compression driver for articulate mids and smooth, extended highs. Yamaha’s FIR-X linear-phase crossover and D-Contour processing keep mixes clear and consistent at any volume, while the onboard 3-channel mixer makes quick setups simple—no external mixer required for small gigs. Use it as a FOH main, floor monitor, or install speaker; the DXR10 MKII adds flexible mounting, dual-angle pole sockets, and fly points to fit your workflow. Rugged construction and reliable protection circuitry ensure performance night after night.
Part of the DXR MKII Series, the DXR10 MKII combines high SPL capability, refined DSP, and pro I/O—ideal for mobile PA, houses of worship, corporate AV, and stage monitoring.
Key Features
- 1100W peak Class-D bi-amplification with high headroom and fast transient response.
- 10" LF driver with 2" voice coil and 1.75" neodymium HF compression driver.
- FIR-X linear-phase crossover and D-Contour dynamic EQ for clarity at high SPL.
- Onboard 3-ch mixer: mic/line combo inputs, stereo line inputs, link out and thru.
- 90° × 60° horn, dual-angle 35 mm pole mount (0°/-7°), and M10 rigging points.
Specifications
Type
10" 2-way, bi-amp powered, bass-reflex
Frequency Range (-10 dB)
~56 Hz – 20 kHz
Nominal Coverage
90° (H) × 60° (V)
Amplifier Power
1100 W peak / 700 W continuous (LF 600 W + HF 100 W)
Maximum SPL
Up to ~132 dB SPL (1 m)
Drivers
LF: 10" cone, 2" VC · HF: 1.75" neodymium compression driver
Inputs / Mixer
Ch1: XLR/TRS combo (mic/line) · Ch2: XLR/TRS combo (line) · Ch3: RCA stereo; XLR Thru & Link Out
Processing
FIR-X crossover · D-Contour (FOH/Monitor/Off)
Mounting
35 mm pole socket (0° / -7° tilt) · M10 fly points · Floor-monitor angle
Enclosure
Durable ABS, matte black finish
Dimensions (W × H × D)
≈ 12.0" × 19.8" × 12.2" (305 × 502 × 310 mm)
Weight
≈ 30.6 lb (13.9 kg)
Power
100–240 V AC · Typical consumption ≈ 90 W
Related Keywords:
Yamaha DXR10 MKII, YADXR10MKII, 10-inch powered speaker, 1100W active PA speaker, DXR MKII series
| In-Store Pickup | Yes |
|---|---|
| UPC | 889025122719 |
| Stock Last | 4 |
