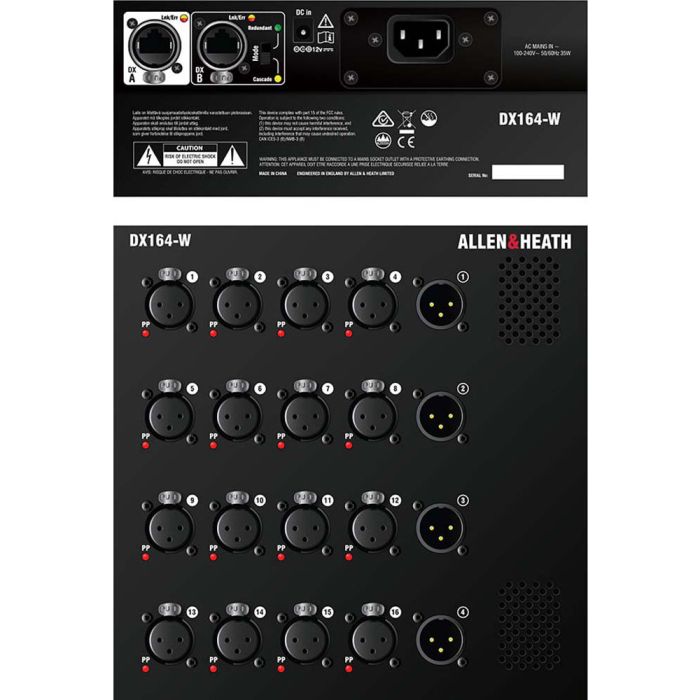

Allen & Heath DX164-W
16 XLR Input / 4 XLR Output Wall Mount DX Expander
The DX164-W is a wall mountable expander that adds remote I/O to a dLive system.
Each DX164-W features 16 mic preamps with independent Phantom Power LED indicators, plus 4 XLR line outs. Up to 6 DX164-W units can be connected to a standard dLive system – 4 via the MixRack and 2 via the Surface – allowing up to 96 remote inputs and 24 remote outputs in addition to those provided by the MixRack and Surface. Further units can be added to a dLive system via a DX Link card or DX HuB
iHomiLA
821 S Los Angeles St, Los Angeles, 90014
United States
Pickup available
The DX164-W connects via a single Cat5e cable to the dLive Surface, MixRack, DX Hub or upstream DX164-W / DX168 via a secure etherCON port. A second locking etherCON port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX164-W or DX168 for additional remote I/O.
The Expander’s design allows for wall mount operation or, alternatively, installation in a stage “Dip Trap” making it perfect for fixed installations.
Features:
- Designed for Wall Mount or Dip Trap installation
- 16 Mic Preamps on XLR
- Phantom Power LED per Input
- 4 XLR Line Outs
- Locking EtherCon ports
- Daisy chain or redundant connection
