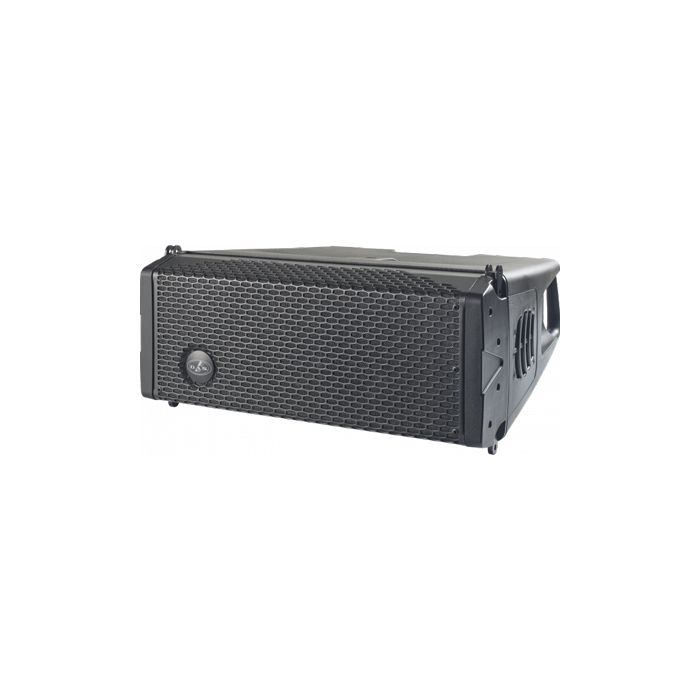

DAS AUDIO Event 26A
2-Way Active Line Array 2 x 6.5”+1 x 1." 400W CONT./800W PEAK
The EVENT-26A is an asymmetrical, ultra-compact, two-way powered line array system. Designed by DAS engineers to deliver stunning performance and exceptional ease-of-use, the stylish polypropylene cabinet design offers a highly portable and road-worthy system. A comprehensive range of accessories makes the EVENT-26A ideal for small to mid-size rental and installation applications.
The EVENT-26A combines two 6.5″ transducers and a single M-60 compression driver in a rugged yet lightweight polymer cabinet. The symmetric “V” shaped configuration of the cone transducers provides consistent 100º of horizontal coverage down to 200 Hz. The M-60 compression driver is coupled to an advanced waveguide design that provides control of the vertical dispersion as well as precise coupling between units when used in vertical arrays.
Powered by a two-channel Class D amplifier providing 800 Wpeak power, the amp´s rear panel includes quality Neutrik® XLR and powerCON connectors. The DAScontrolTM interface makes the preset selection for the number of units in the array both fast and simple. An onboard DSP featuring a 24-bit high-end processor handles X-over, EQ, delay, and limiter functions. The powerful FIR filtering technology incorporated in the EVENT-26A offers constant phase response which translates to transparent sound and exceptional clarity, improving the listening experience.
Streamlined deployment of EVENT-26A arrays is possible thanks to the innovative FSSTM (Fast Set Splay) rigging system developed to permit angle selection while stacked on dollies. The stainless-steel rigging hardware allows flown arrays of up to 16 units in 1º steps from 0º to 10º.
Low-frequency reinforcement for the EVENT-26A is provided by its flyable companion subwoofer the EVENT-115A.
|Nominal Amplifier Power:||400 W CONT|
|Peak Amplifier Power:||800 W PEAK|
|Frequency Range (-10 dB):||80 Hz - 17 kHz|
|Rated Peak SPL at 1 m:||131 dB|
|Horizontal Coverage (-6 dB):||100º Nominal|
|Vertical Coverage:||10º + Splay Dependent|
|Enclosure Material:||High-Impact UV Resistant Polypropylene|
|Connectors:||nput: Female XLR Loop Thru: Male XLR AC Input: powerCON AC Output: powerCON|
|AC Requirements:||115 V, 1.6 A, 50 Hz/60 Hz // 230 V, 0.8 A, 50 Hz/60 Hz|
