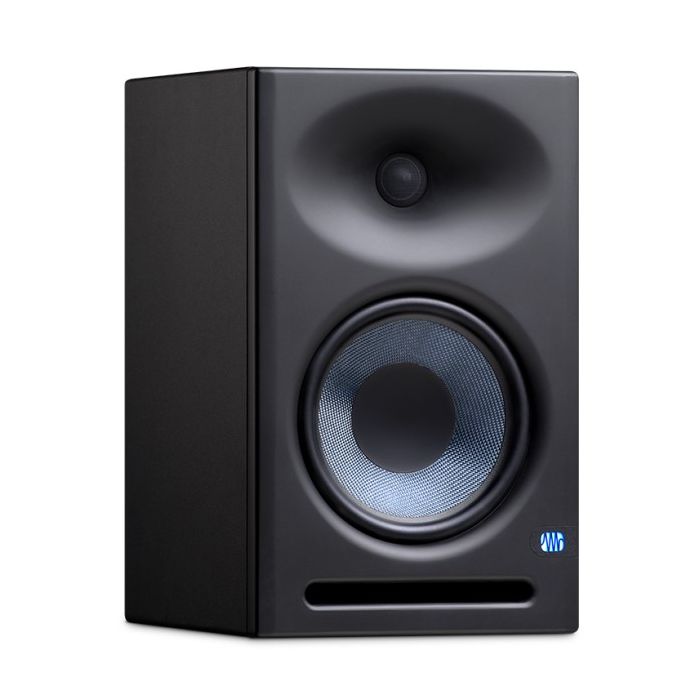

PreSonus Eris E5 XT
$179.99
Eris E5 XT: 2-Way Active Studio Monitors with Wave Guide
Eris E5 XT: 2-Way Active Studio Monitors with Wave Guide
Features
Components and construction
- 5.25-inch woven composite low-frequency transducer
- 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
- Front-firing acoustic port for superior bass-frequency reproduction
- Optimized, resonance-suppressing internal bracing
- 102 dB maximum continuous SPL
User controls
- HF Adjust (±6 dB, continuously variable)
- Midrange Adjust (±6 dB, continuously variable)
- Acoustic Space settings (flat, -2, -4 dB) for accurate mixing contour
- Highpass filter (Off, 80 Hz, 100 Hz)
Power and safety
- 70 watt, Class AB biamplification
- RF interference, output current limiting, over-temperature, transient, and subsonic protection
- Amplifier “soft start” feature eliminates popping on power-up
- Internal power supply with IEC connector
- Power switch with on/off LED
Inputs and outputs
- Balanced XLR/¼-inch
- Unbalanced RCA inputs
Technical Specifications
Inputs
- 1- Balanced XLR
- 1- Balanced ¼” TRS
- 1- Unbalanced RCA
Performance
Frequency Response: 48 Hz - 20 kHz
Crossover Frequency: 3 kHz
LF Amplifier Power: 45W
HF Amplifier Power: 35W
Peak SPL (@ 1 meter): 102 dB
LF Driver: 5.25”
HF Driver: 1” silk dome
Input Impedance: 10 kΩ
Dispersion: 100 degrees horizontal by 60 degrees vertical
User Controls
Volume Range: A-type taper
MF Control: -6, 0, +6 dB
HF Control: -6, 0, +6 dB
Low Cut: Flat, 80 Hz, or 100 Hz
Acoustic Space:Flat, -2 dB, or -4 dB
Protection
- RF interference
- Output-current limiting
- Over-temperature
- Turn-on/off transient
- Subsonic filter
- External mains fuse
Power
- 100-120V ~50/60 Hz or 220-240V ~50/60 Hz
Cabinet
- Vinyl-laminated, medium-density fiberboard
Physical
Width: 8” (203.2 mm)
Depth: 9” (228.6 mm)
Height: 11” (279.4 mm)
Weight: 11 lbs (4.99 kg)
| UPC | 673454008429 |
|---|
