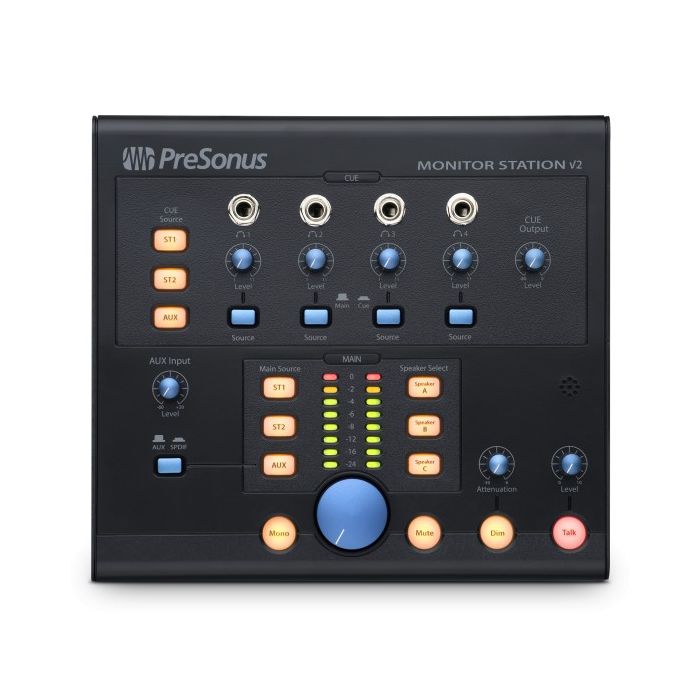

PreSonus Monitor Station V2
PreSonus Monitor Station V2
PreSonus Monitor Station V2
Inputs and Outputs
- 2 Stereo pairs of ¼” TRS inputs
- 1 Stereo pair of RCA Aux inputs
- 1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
- 3 Stereo pairs of ¼” TRS speaker outputs with level controls
- 1 Stereo pair of ¼” TRS Main outputs
- 1 Stereo pair of ¼” TRS Cue outputs
- 4 ¼” TRS screaming-loud stereo headphone outputs
Controls
- Large Main level control
- 3 Individual Main Source (ST1, ST2, Aux) select switches
- 3 Individual Speaker Select switches
- Cue section with Source select (ST1, ST2, Aux) and output-level control
- Aux-S/PDIF Select switch
- Aux Input level control
- Main Mute, Mono, and Dim switches with variable Dim attenuation
Additional Features
- 8-segment color LED input meters with selectable reference level
- Built-in electret-condenser talkback microphone with input-gain control and Talkback button
- Convenient desktop design
Technical Specifications
Audio Inputs
Internal Talkback Microphone
- Gain Range +15 to +55 dB
- Type Electret condenser
- Sensitivity -42 dB
Stereo 1 and Stereo 2 Inputs
Type: ¼” TRS Active Balanced
Input Impedance (Balanced): 10 kΩ
S/N Ratio (1 kHz @ +10 dBu, Unity Gain): >105 dB
THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain): <0.0075%
Frequency Response (±0.5 dB): 10 Hz to 65 kHz
Noise Floor (20 Hz to 20 kHz, 150Ω input termination): -96 dBu
Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N): +22 dBu
Auxiliary Inputs
Type: RCA Active Unbalanced
Input Impedance: 47.5 kΩ
S/N Ratio (1 kHz @ 0 dBu, Unity Gain): >115 dB
THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain): <0.01%
Frequency Response (±0.5 dB): 10 Hz to 50 kHz
Gain Range: 80 dB to +10 dB
S/PDIF
Types: RCA 75Ω coax
Dynamic Range: 113 dB
THD+N: 0.0025% (1 kHz @ -1 dBFS)
Maximum output at 0 dBFS: +18 dBu
Sample Rates: 44.1, 48, 88.2, 96 kHz
Input Meters (ST1, ST2, and Aux only)
Type: Dual 8-segment LED w/peak hold
Sensitivity Range: -24 dB to 0 dB
Audio Outputs
Type: ¼” TRS Active Balanced
Output Impedance (Balanced): 51Ω
THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain): <0.01%
Frequency Response (±0.5 dB):10 Hz to 50 kHz
Speaker A, B, and C
Trim Range: -80 dB to 0 dB
Main Level Range: -80 dB to 0 dB
Dim Attenuation Range: -30 dB to -6dB
Headphones
Type: ¼” TRS Active Stereo
Maximum Output (60Ω load): 150 mW / channel
Frequency Response (±1.0 dB): 10 Hz to 50 kHz
Power
Power Supply Type: External DC Transformer/Internal Line
Input Connector Type: Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter
Monitor Station Input Voltage Range: 18 VDC
Power Requirements (Continuous): 10W
Physical
Dimensions
Height: 2.5” (63.5 mm)
Depth: 8.5” (216 mm)
Width: 9” (228.6 mm)
Weight: 6 lbs. (4.54 kg)
| UPC | 673454002823 |
|---|
