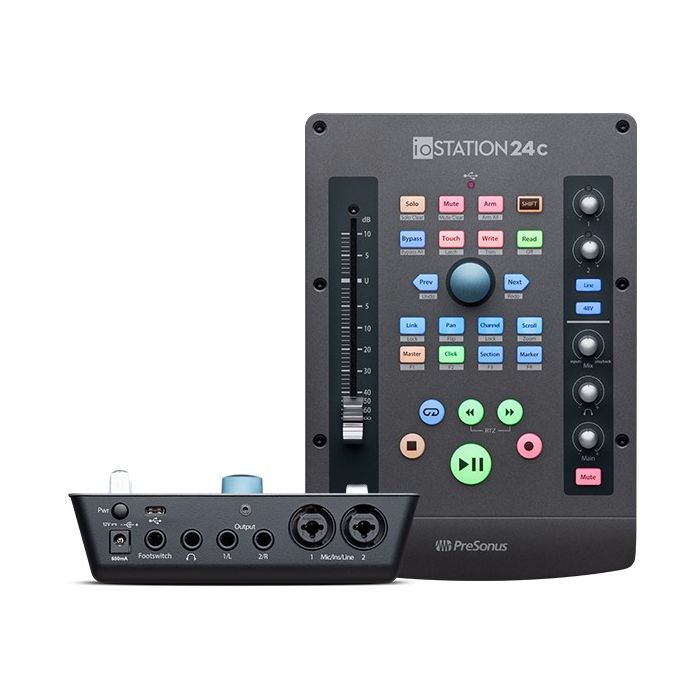

PreSonus ioStation 24c
ioStation 24c: 2x2 USB-C™ compatible audio interface and production controller
ioStation 24c: 2x2 USB-C™ compatible audio interface and production controller
Features
General Features
- Two products in one: audio interface and production controller
- Record through two high-quality XMAX mic preamps
- Control your favorite DAW with a touch-sensitive motorized fader and intuitive navigation controls
- Compact, ergonomic design fits into any studio, whether in your bedroom or your backpack
Recording Features
- USB-C™ compatible (USB 2.0), 24-bit/192 kHz audio interface
- 2 mic/instrument/line inputs with XMAX mic preamps
- 2 balanced ¼” TRS main outputs
- Simultaneous I/O up to 2 inputs and 2 outputs
- Mixer knob for low-latency direct input monitoring
- 1 ¼” headphone output with independent level control
- USB 2.0 connectivity, macOS/Windows compatible
Production Features
- Single touch-sensitive, 100 mm long-throw, motorized fader
- Large, 360° button encoder
- Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
- Drop Marker, Next/Prev Marker, Next/Prev Event
- General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Click On/Off
- Session Navigator provides quick control over Track Scrolling, Timeline Scrolling, and much more
- Channel Controls: Level, Pan, Solo, Mute, Rec Arm
- Automation Controls: Touch, Latch, Trim, Write, Read, Off
- Native Studio One support with tightly integrated control
- Dedicated MCU modes for Logic, Live, and Cubase / Nuendo
- Customized HUI implementation for Pro Tools
- Footswitch input for hands-free start/stop (footswitch not included)
Included Software
- Studio One Artist recording and production software
- Over 6GB of additional loops and sample content
- Studio Magic Plug-in Suite
Computer system requirements:
Below are the minimum computer-system requirements for the ioStation 24c.
Windows
- Windows® 10 (64-bit only)
- Intel® i3 / AMD A10 processor or better
- 4 GB RAM (8 GB or more recommended)
Mac
- macOS® 10.13 or higher (64-bit only)
- Intel® i3 or better
- 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB-C™ or USB-A 2.0 port compatibility
- 32 GB hard disk space
- PreSonus Universal Control 2.0 or higher
- Monitor with 1366x768 resolution (high-dpi monitor recommended)
- Multitouch-enabled monitor required for touch operation
Microphone Preamp
Type: XLR Female (via Combo), Balanced
Maximum Input Level: +16 dBu (Balanced, min. gain)
Gain Control Range: 80 dB
Frequency Response: 20 Hz to 20 kHz (±0.15 dB, unity gain, 48 kHz)
Dynamic Range: > 107 dB (A-wtd, min. gain)
Total Harmonic Distortion: < 0.007% (1 kHz, min. gain)
EIN: < -128 dBu (max gain, 40Ω, 22 kHz BW, A-wtd)
Input Impedance: 1.6 kΩ
Phantom Power: +48V, > 8 mA per input
Instrument Inputs
Type: ¼” TS Female (via Combo), Unbalanced
Maximum Input Level: +15 dBu (Unbalanced, min. gain)
Gain Control Range: 80 dB
Frequency Response: 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)
Dynamic Range: > 110 dB (A-wtd, min. gain)
Total Harmonic Distortion: < 0.012% (1kHz, -1 dBFS, min. gain)
Input Impedance: > 1 MΩ
Line Inputs
Type: ¼” TRS Female (via Combo), Balanced
Maximum Input Level: + 22 dBu (Balanced, min. gain)
Frequency Response: 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
Dynamic Range: > 114 dB (A-wtd, min. gain)
Total Harmonic Distortion: < 0.007% (1 kHz, -1 dBFS, min. gain)
Input Impedance: 10 kΩ
Main and Line Outputs
Type: ¼” TRS Female, impedance balanced
Maximum Output Level: +18 dBu (Balanced)
Frequency Response: 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)
Dynamic Range: > 109 dB (A-wtd)
Total Harmonic Distortion: < 0.005% (1 kHz, +4 dBu)
Headphone Outputs
Type: ¼” TRS Female, Stereo, Unbalanced
Maximum Output Level: 150 mW/channel (56Ω load)
Frequency Response: 20 Hz to 20 kHz (±0.2 dB, 56Ω load, 48 kHz)
Dynamic Range: > 107 dB (A-wtd)
Total Harmonic Distortion: < 0.02% (1 kHz, -1 dBFS, no load)
Headphone Impedance (working range): 32Ω to 300Ω
Digital Audio
Connection Type: USB 2.0 over USB-C™ Compatible Connection
ADC Dynamic Range: 115 dB (A-wtd)
DAC Dynamic Range: 115 dB (A-wtd)
Bit Depth: 24 bits
Internally Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Clock
Jitter: < 70 ps RMS (20 Hz – 20 kHz)
Jitter Attenuation: > 60 dB (1 ns in => 1 ps out)
Power
- 12 VDC, 1.2A, external power supply
Physical
Height: 2.4" (61 mm)
Depth 6.8" (172 mm)
Width: 9.6" (244 mm)
Weight: 2.2 lbs (1 kg)
| UPC | 673454008672 |
|---|
