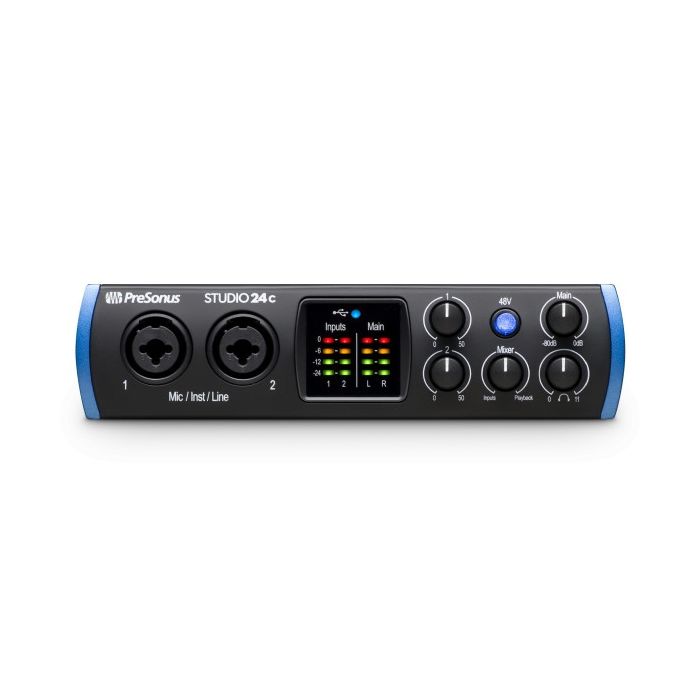

PreSonus Studio 24c

In stock
SKU
Studio 24c
UPC     673454007910
Special Price $159.95 Regular Price $199.95
Brand:

Studio 24c: The portable, affordable, ultra-high-def, USB-C™ compatible audio interface.

UPC     673454007910

Studio 24c: The portable, affordable, ultra-high-def, USB-C™ compatible audio interface.

Features

Input/Output

  • Simultaneous I/O up to 2 inputs/2 outputs.
  • 2 mic/instrument/line inputs with XMAX-L mic preamps.
  • 2 balanced ¼” TRS main outputs.
  • 1 stereo headphone output.
  • MIDI In/Out.
  • 1 USB-C™ compatible 2.0 port.
    • USB-C™ to USB-C™ and USB-C™ to USB-A cables included for compatibility with most computers

Meters, Controls, and Features

  • Mixer knob for low-latency direct input monitoring
  • Front-panel level controls for main outputs
  • +48V phantom power for condenser microphones (global)
  • 4 ladder-style LED level meters (2 input, 2 main output)

Integrated Software

  • Studio One Artist®
  • Studio Magic Plug-in Suite

Digital

  • USB-C™ compatible port (USB 2.0)
  • 24-bit resolution
  • 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates

Physical

  • Road-rugged construction with all-metal chassis and metal knobs
  • USB bus-powered

Computer system requirements:
Below are the minimum computer-system requirements.

Mac

  • macOS® 10.13 or higher (64-bit only)
  • Intel® Core™ i3 processor or better
  • 4 GB RAM (8 GB or more recommended)

Windows

  • Windows® 10 (64-bit only)
  • Intel Core i3 / AMD A10 processor or better
  • 4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

  • USB-C™ or USB-A 2.0 port compatibility
  • 30 GB hard disk space
  • Monitor with 1366x768 resolution (high-dpi monitor recommended)
  • Multitouch-enabled monitor required for touch operation
Technical Specifications

General

Sample Rates: 44.1, 48, 88.2, 96, 176.4, or 192 kHz
Converter Resolution: 24 bit
ADC Converter Dynamic Range: 108 dB
DAC Converter Dynamic Range: 108 dB

Microphone Inputs

Maximum Level: +10 dBu (±0.5 dBu, min gain)
Gain Range: 50 dB
Frequency Response: 20 Hz - 20 kHz (±0.3 dBu, unity gain, unwtd)
Dynamic Range: 106 dB (A-wtd, min gain)
THD + N: 0.004% (1 kHz, -1 dBFS, min gain)
EIN: -126 dBu (A-weighted, 150Ω, max gain)
Input Impedance: 1.4 kΩ
Phantom Power: +48 VDC (10 mA total)

Instrument Inputs

Maximum Level: +19 dBu (min gain)
Gain Range: 50 dB
Frequency Response: 20 Hz – 20 kHz (±0.1 dBu, unity gain, unwtd)
Dynamic Range: 105 dB (A-wtd, unity gain)
THD + N: 0.002% (1 kHz, min gain)
Input Impedance: 750 kΩ

Main Outputs

Type: ¼" TRS, Female

Maximum Level: +10 dBu (1 kHz, unity gain, balanced)

Frequency Response: 20 Hz – 20 kHz (±0.3 dBu, unity gain, unwtd)

Dynamic Range: 104 dB (unity gain, unwtd)

THD + N: 0.001% ( 1 kHz, -1 dBFS, unity gain)

Headphone Outputs

Maximum Power: 47 mW / channel @ 56Ω
Frequency Response: 20 Hz – 20 kHz (±0.5 dBu, unity gain, unwtd)
Dynamic Range: 83 dB (A-wtd, 56Ω load)
THD + N: 0.01% (1 kHz, 0 dBFS, loaded)
Impedance Working Range: 32Ω to 300Ω

Physical

Height: 1.75" (44 mm)
Width: 7" (180 mm)
Depth: 5.5" (144 mm)
Weight: 2 lbs. (0.9 kg)


UPC     673454007910
