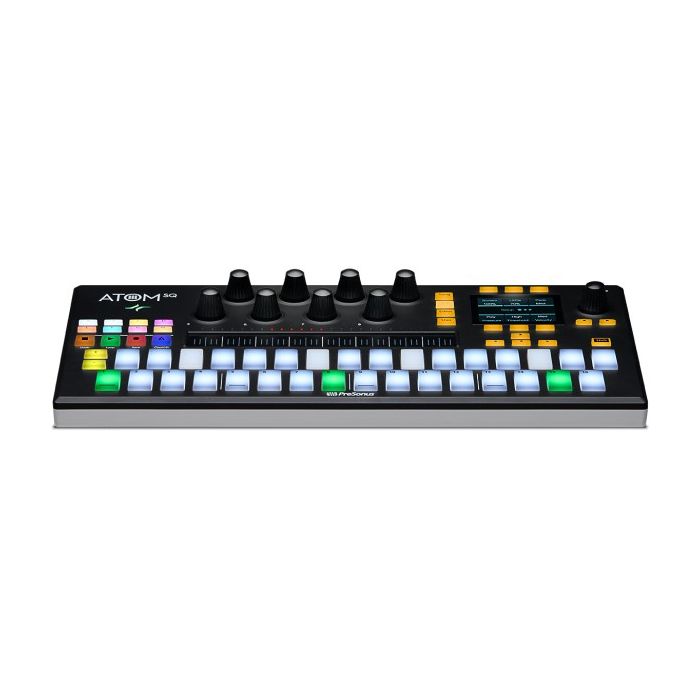

ATOM SQ
Features
- A complete music production package featuring a hybrid MIDI keyboard/pad performance and production controller with Studio One® Artist and Ableton® Live Lite both included
- 32 velocity- and pressure-sensitive, RGB LED pads in a unique, staggered layout; intuitive for keyboard players and step sequencer fans
- Context-sensitive screen displays valuable parameter information including CC assignments, swing, and much more
- Eight endless rotary encoders can be easily configured to control nearly any software parameter
- Includes 2 loop packs with custom kits for Impact XT
- Expressive arpeggiator for dramatic, easily-performed melodies
- Includes custom-curated content libraries for ATOM SQ
- Constrain to Scale feature puts an end to wrong notes forever
- MCU and HUI modes for transport control in nearly every DAW
- Powerful MIDI mode lets you control your favorite DAW or virtual instrument with ease
- USB bus-powered for easy connectivity and maximum portability
Studio One Integration Features
- Automatically detected by Studio One, no setup required
- Deep integration with Studio One’s Pattern editor for intuitive step sequencer programming
- Navigate and choose instruments and effects from the Browser
- Change presets on virtual instruments and effects
- Create a new track
- Activate metronome and change song tempo
- Set looping points in timeline
- Navigate the timeline
- Zoom in and out on the timeline or events
- Directly edit MIDI events and also apply Quantization or Humanization commands
- Transport control (stop, play, record)
- Studio One dynamically switches ATOM between Keyboard and Drum modes depending on the selected instrument
- Requires Studio One v5 or later for full integration support
Ableton® Live Integration Features
- Seamless Integration with Ableton® Live
- Use ATOM SQ’s Constrain to Scale mode and Arpeggiator to perform live
- Change session Tempo, navigate the timeline, open/close windows, and display which windows are open or closed
- Control track Volume, Panning, send level and Solo/Mute/Arm status
- Select a Device and edit its parameters
- Navigate Clips and Scenes
- Launch or stop Clips and Scenes
- Control Live’s crossfader with ATOM SQ’s touch strip
- Transport control (stop, play, record) plus "Capture MIDI"
- User Mode for custom assignments
- Requires Ableton Live version 10.1.15 or later for full integration support
Modes
- Studio One native
- Live native
- MCU/HUI*
- Standard MIDI controller
Connections
- USB-C™-compatible Port
Included Software
- Studio One® Artist production software for Mac® and Windows®
- Ableton® Live Lite (for registered users after October 20, 2019)
- 2 bonus loop packs with custom kits for Studio One’s Impact XT
- Compatible with most music production and performance software for Mac and Windows
Computer system requirements:
Below are the minimum computer-system requirements for ATOM with Studio One 5 or later:
macOS®
- macOS® 10.13 or higher (64-bit only)
- Intel® Core™ i3 or better
- Minimum 4GB RAM / Recommended 8GB or more
Windows®
- Windows® 10 (64-bit only)
- Intel® Core™ i3/AMD A10 processor or better
- Minimum 4GB RAM / Recommended 8GB or more
Mac and Windows Systems
- USB 2.0 port
- Internet connection (needed for software installation and activation)
- Monitor with 1366 x 768 resolution (high-dpi monitor recommended)
- 20 GB hard-drive space (for Studio One and ATOM SQ-exclusive content)
- Universal Control 3.3 or later (for firmware updates)
- Studio One 5+ required for native integration
Technical Specifications
Input
Connection Type: USB-C™ compatible USB 2.0 connection (bus-powered)
Pads, Buttons, and Knobs
- 32 velocity- and pressure-sensitive, RGB LED pads
- 16 assignable buttons
- 8 endless rotary knobs
- 1 Assignable multifunction touch strip
Dimensions
Height: 0.98” (25 mm)
Depth: 6.8” (172 mm)
Width: 14.25” (362 mm)
Weight: 2 lb. (0.91 kg)
| UPC | 673454008726 |
|---|
