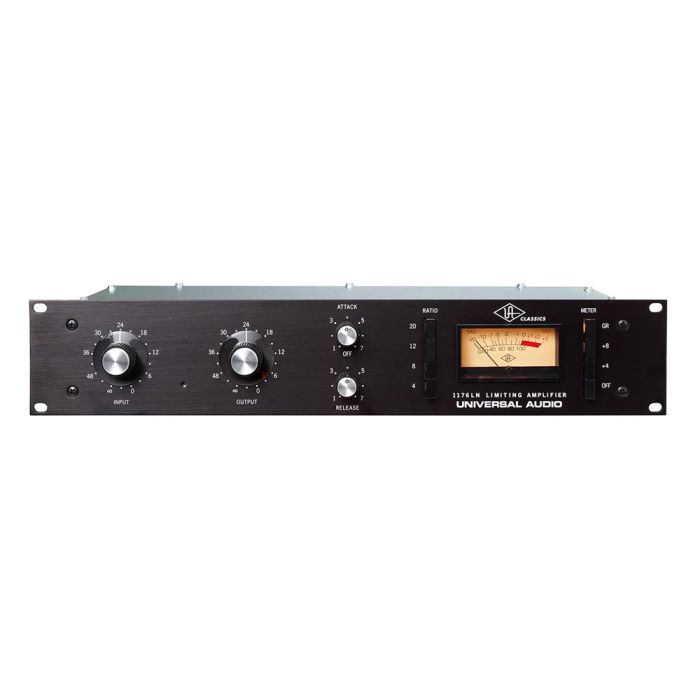

Universal Audio 1176LN Classic Limiting Amplifier

In stock
SKU
1176LN
$2,599.00
Brand:

Universal Audio Legendary FET Limiting Amplifier

A Toneful, Colorful Compressor
Billed as a “true peak limiter with all transistor circuitry and superior performance on all types of program material," the 1176’s major selling point was its ultra-fast attack time — a mere 20 µS (.00002 seconds) at its fastest setting. But engineers soon found out that the 1176 also injected character, attitude, and vibe to anything run through its circuitry. Some even used the 1176 with the compression turned off, just for the distinctive tone it imparts. The unit’s amplifiers and transformers all by themselves give a desirable “hot” quality to anything passing through them.

Rebirth of a Legend
In 1999, when Bill Putnam, Jr. relaunched Universal Audio, a reproduction of the Blackface 1176LN was the company’s first product. Reissued in 2000, it was based on the circuit designs of the C, D, and E revs of the classic 1176. One of the most critical aspects of recreating the sound of the original hardware, was faithfully reproducing the original output transformer, complete with the additional windings that provided the feedback signal to the final line output amplifier circuit. Bill Putnam Jr. found extensive design notes that enabled him to recreate and improve his father’s original design.

Push-Button Magic
One of the 1176’s famous features are its push-button selectable ratios of 4:1 and 8:1 for compression, and 12:1 and 20:1 for limiting. 1176 at 4:1, to its most notable setting, the “All Buttons In” mode, where all the ratio buttons are depressed simultaneously. This allows the 1176 to make a sound unlike any other processor ever heard before. Distortion increases, along with a plateaued slope and a lag time in response to initial transients, creating an explosive sound on drum room mics, fuzzing-out bass or electric guitar sound, or squeezing a vocal to bring it front and center of your mix.

Accept No Substitutes
Carefully trained Universal Audio staff hand build and test each unit at the UA Custom Shop in Santa Cruz, California until it meets our uncompromising standards. This Universal Audio Classic version of the 1176LN captures all the nuance of the original through obsessive attention to detail and delivers that trademark sound. Demand the original.

  • True to the original in design, manufacturing and performance
  • Modeled after 1176LN, blackface, D and E revisions
  • Ultra fast attack time -20 microseconds to 800 microseconds
  • Class A line level output amplifier
  • Custom built Putnam-designed output transformer
  • Stereo interconnect operation
  • Hand-built in USA; backed by 1-year limited warranty

Input Impedance
600 ohms, bridges-T control (floating)

Output Load Impedance
600 ohms, floating, damping factor 20

External Connections
Jones Barrier terminals and XLR connectors

Frequency Response
± 1 dB 20 Hz to 20kHz

Gain
50 dB

Distortion
Less than 0.5% total harmonic distortion from 50 Hz to 15 kHz with limiting

Signal to Noise Ratio
Greater than 70 dB at +10 dBm

Attack Time
20 microseconds to 800 microseconds

Release Time
50 milliseconds to 1.1 seconds

Stereo Interconnection
via 1176 SA Network accessory

Meter
dB gain reduction and dB output

Power Requirements
120/240 V

Environmental
Maximum operating temperature 160°F

Dimensions
19" Rackmount chassis, 2U

Weight (unboxed)
11 lbs.
