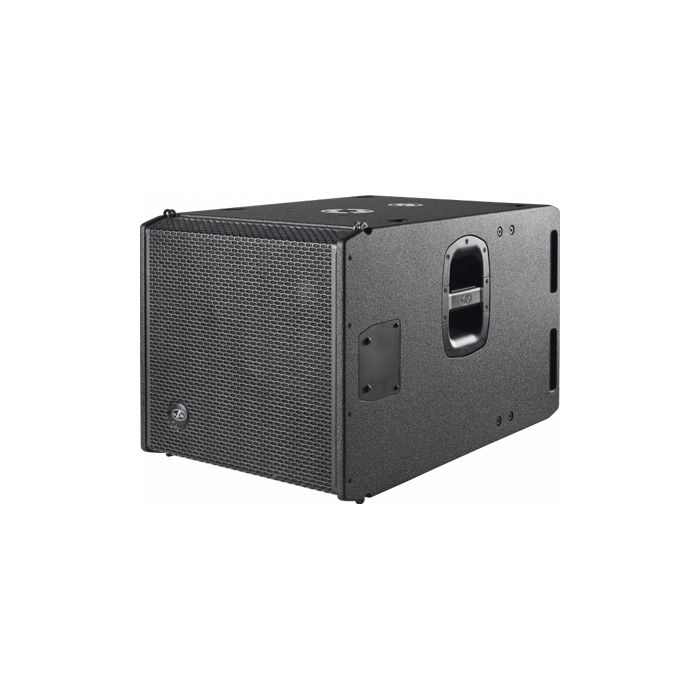

DAS Event 115A
Flyable Powered Subwoofer 1 x 15" w/ 1200 W Peak Amplifier
Active front-loaded subwoofer system 1 x 15? DAS 15FW4 loudspeaker High-efficiency Class D amplifier with SMPS Dual voltage mains for use anywhere in the world Easy system configuration thanks to DAScontrolTM High-end 24-bit DSP with LCD screen EVENT-26A compatible rigging hardware
The EVENT-115A is a compact powered subwoofer system that uses a front-loaded 15” low-frequency transducer developed by DAS. Designed as the companion subwoofer for the EVENT-26A, they share a compatible rigging system which allows the EVENT-26A to be flown from or stacked above the EVENT-115A.
The 15FW4 15″ loudspeaker used in the EVENT-115A has been engineered by DAS to provide outstanding performance and reliability. The 15FW4 speaker design has been optimized using Finite Element Analysis (FEA) and incorporates an extended 3″ voice coil for high-efficiency and long excursion offering a power handling capacity of 1200 W program. Efficient cooling is assured thanks to the 15FW4´s vented pole piece and abundant apertures in the speaker´s backplate keeping power compression to a minimum while providing high acoustic output over extended periods.
Driving the DAS 15FW4 loudspeaker is a cutting-edge 1200 W peak Class D amplifier. On the rear panel, quality Neutrik® XLR input connectors and stereo “loop thru” output connections are available to provide signal for the EVENT-26A systems. Thanks to the digital presets accessible by way of the DAScontrol™ interface on the rear of the cabinet, set-up of a complete system is extremely easy.
The EVENT-115A cabinet is constructed from Birch plywood using a robust enclosure design and finished with the DAS ISO-flex protective coating for extended durability. The rigging hardware is compatible with the EVENT-26A allowing it to be flown directly below or stacked above the subwoofer unit. A top located pole mount socket is available allowing the EVENT-26A to be used in a combo configuration.
|Amplifier Power:||600 W Continuous / 1200 W Peak|
|Frequency Range (-10 dB):||40 Hz - 125 Hz|
|Rated Peak SPL at 1 m:||131 dB|
|Connectors:||INPUT: 2 x Female XLR LOOP THRU: 2 x Male XLR AC INPUT: 1 x powerCON AC OUTPUT: 1 x powerCON|
|AC Requirements:||115 V, 2.8 A, 50 Hz/60 Hz // 230 V, 1.4 A, 50 Hz/60 Hz|
|Enclosure Material:||Birch Plywood|
