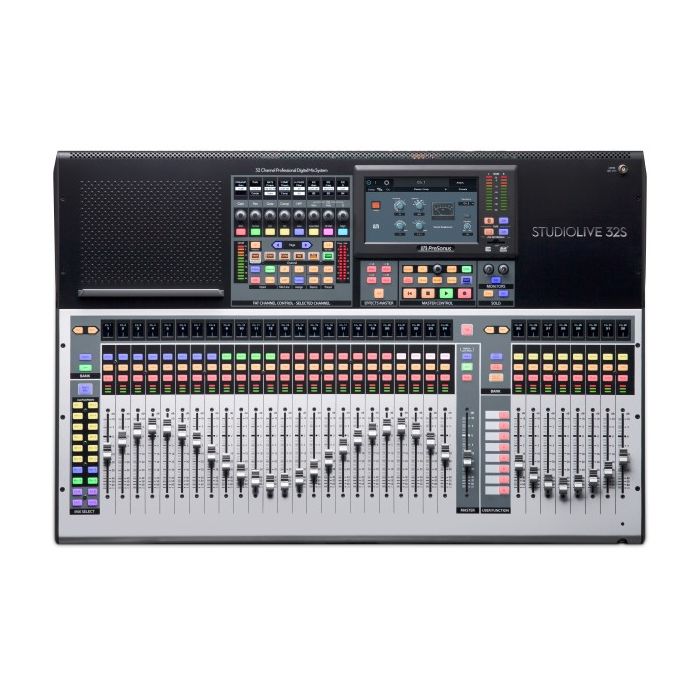

PreSonus StudioLive 32S Series III

Out of stock
SKU
StudioLive 32S Series III
UPC     673454008139
Special Price $2,999.95 Regular Price $3,899.95
Brand:
UPC     673454008139

StudioLive® 32S: 32-channel digital mixer and USB audio interface

Features

  • Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
  • 40 input-channel digital mixer with 33 touch-sensitive motorized faders
    • 32 local digitally controlled XMAX mic/line inputs
    • 2 balanced stereo aux inputs
    • 1 stereo tape input (RCA, Bluetooth™ connectivity, USB, AVB or SD)
    • 4 FLEX FX returns
    • 1 Talkback
  • 26 mix buses
    • 16 FlexMixes (Aux, Subgroup, Matrix)
    • 4 dedicated FLEX FX buses
    • 4 dedicated subgroups
    • Stereo Main bus
  • 286 simultaneous processors
    • HPF
    • Gate / Expander
    • Compressor with Fat Channel plug-in models
    • 4-band/6-band parametric EQ with Fat Channel plug-in models
    • Limiter
    • 31-band Graphic EQ
    • 4 FLEX FX slots featuring legendary classic reverb emulations and delays
  • State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
  • FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
  • 24 DCAs to control groups of channels
  • 128-channel (64x64) recording over USB
  • Onboard multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
  • AVB Networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
  • User Profiles for managing multiple operators with custom permissions
  • Per channel digital patching from any analog, AVB, USB, or SD Card source
  • DAW Control
    • Advanced Studio One control integration
    • MCU emulation mode optimized for Logic
    • HUI emulation mode optimized for ProTools
  • Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
  • Put your musicians’ monitor mix under their fingers with QMix-UC (included) for iOS or Android
  • Capture 3.0 multitrack software included
    • Automated Virtual Soundcheck
    • Store StudioLive mix scenes with your audio
  • Advanced Studio One integration (Studio One Artist Included)
    • XMAX mic preamp control from Studio One
    • Control Fat Channel parameters from Studio One mixing console

Computer system requirements:
Below are the minimum computer-system requirements for UC Surface, QMix®-UC, and Studio One®.

Mac

  • macOS® 10.13 or higher (64-bit only)
  • Intel® Core™ i3 or better
  • Minimum 4 GB RAM (8 GB or more recommended

Windows

  • Windows® 10 (64-bit only)
  • Intel Core i3 or better
  • Minimum 4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

  • USB 2.0 port
  • Internet connection
  • Internal or external 7200 RPM storage drive highly recommended
  • 30 GB hard disk space
  • Monitor with 1366x768 resolution

iOS

  • iOS 10 or later
  • iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)

Android

  • Android™ 6.0 (Marshmallow) or later
  • Android smartphone (QMix-UC)
  • Android tablet (8-inch) with 1024x768 resolution (UC Surface)
Technical Specifications

Microphone Preamplifier

  • Input Type: XLR Female, balanced
  • Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
  • Input Impedance: 1 kΩ
  • THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
  • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
  • Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
  • Gain Control Range (±1 dB): 0 dB to +60 dB
  • Maximum Input Level (unity gain): +12 dBu
  • Phantom Power (±2 VDC): 48 VDC, switchable per channel
Line Inputs
  • Type: ¼” TRS Female, balanced
  • Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
  • Input Impedance: 10 kΩ
  • THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
  • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
  • Maximum Input Level: +18 dBu

Tape Inputs

  • Type: RCA Female, unbalanced (stereo pair)
  • Maximum Input Level: +12 dBu, ±0.5 dBu
XLR Outputs
  • Type: XLR Male, balanced
  • Maximum Output Level: +24 dBu, ±0.5 dBu
  • Output Impedance: 100Ω
Line Outputs
  • Type: ¼” TRS Female, balanced
  • Maximum Output Level: +18 dBu, ±0.5 dBu
  • Output Impedance: 100Ω

Tape Outputs

  • Type: RCA Female, unbalanced (stereo pair)
  • Maximum Output Level: +18 dBu, ±0.5 dBu
  • Output Impedance: 100Ω

Headphone Output

  • Type: ¼” TRS Female, active stereo
  • Maximum Output: 100 mW/ch. @ 60Ω load
  • Frequency Response: 20 Hz – 20 kHz (± 0.5 dB)
  • THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
  • S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

System Crosstalk

  • Input to Output: -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
  • Adjacent Channels: -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
Digital Audio and Control
  • ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
  • DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
  • USB Recording Port: USB 2.0, Type-B
  • Bluetooth™ Input: 4.1, stereo
  • AES/EBU Output: XLR Male
  • Network Control Port: RJ-45
  • AVB Audio Network Port: Locking XLR Ethernet
  • Internal Processing: 32-bit, floating point
  • Sampling Rate: 48 kHz, 44.1 kHz
  • A/D/A Bit Depth: 24
  • Reference Level for 0 dBFS: +18 dBu
  • Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)

Clock

  • Jitter: <20 ps RMS (20 Hz - 20 kHz)
  • Jitter Attenuation: >60 dB (1 ns in, 1 ps out)

Power / Environmental

  • Connector: IEC
  • Input-Voltage Range: 90 to 230 VAC (±10%)
  • Power Requirements (continuous): 85W
  • Recommended Ambient Operating Temperature: 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit

Physical

  • Height: 6.51” (165.36 mm)
  • Width: 32.37” (822.21 mm)
  • Depth: 22.97” (583.48 mm)
  • Weight: 37.2 lbs. (16.9 kg)
