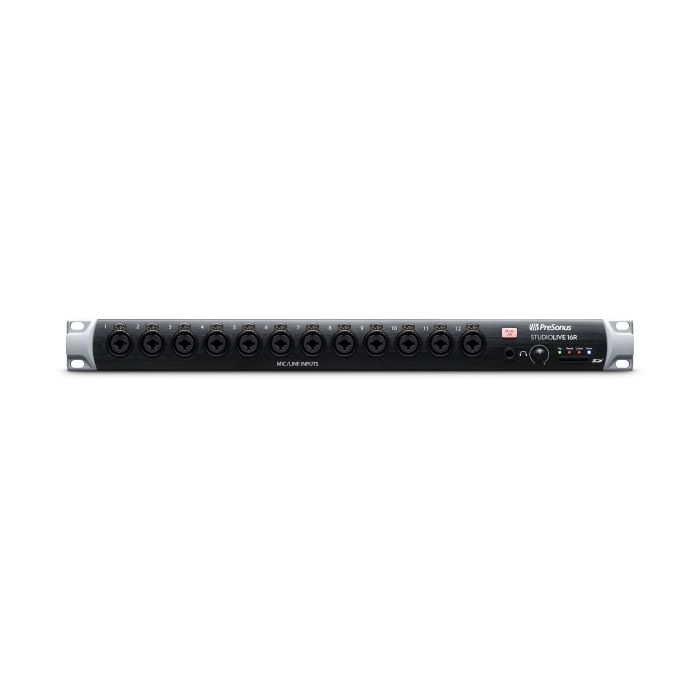

PreSonus StudioLive 16R
StudioLive 16R: 18-input, 16-channel Series III stage box and rack mixer
StudioLive 16R: 18-input, 16-channel Series III stage box and rack mixer
Features
Powered by the new single-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class.
18 input-channel digital rack mixer.
- 16 local digitally controlled XMAX mic/line inputs
- 2 FLEX FX returns
10 mix buses.
- 6 FlexMixes (Aux, Subgroup, Matrix)
- 2 dedicated FLEX FX buses
- Stereo Main bus
130 simultaneous processors.
- HPF
- Gate / Expander
- Compressor with Fat Channel plug-in models
- 4-band/6-band parametric EQ with Fat Channel plug-in models
- Limiter
- 31-band Graphic EQ
- 4 FLEX FX slots featuring legendary classic reverb emulations and delays
- Monitor Mix and Stage Box Mode for use with StudioLive Series III console mixers
- Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
- Automated Virtual Soundcheck.
- Store StudioLive mix scenes with your audio.
- XMAX mic preamp control from Studio One.
- Control Fat Channel parameters from Studio One mixing console.
Computer system requirements:
Below are the minimum computer-system requirements for UC Surface, QMix®-UC, and Studio One®.
Mac
- macOS® 10.13 or higher (64-bit only)
- Intel® Core™ i3 or better
- Minimum 4 GB RAM (8 GB or more recommended)
Windows
- Windows® 10 (64-bit only)
- Intel Core i3 or better
- Minimum 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB 2.0 port
- Internet connection
- Internal or external 7200 RPM storage drive highly recommended
- 30 GB hard disk space
- Monitor with 1366x768 resolution
iOS
- iOS 10 or later
- iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)
Android
- Android™ 6.0 (Marshmallow) or later
- Android smartphone (QMix-UC)
- Android tablet (8-inch) with 1024x768 resolution (UC Surface)
Technical Specifications
Microphone Preamplifier
Input Type: Combo locking XLR mic-¼” TRS line.
Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
Input Impedance: 1 kΩ
THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
Gain Control Range (±1 dB): 0 dB to +60 dB
Maximum Input Level (unity gain): +12 dBu
Phantom Power (±2 VDC): 48 VDC, switchable per channel
Unbalanced Inputs (Ch. 15-16)
Type: RCA Female, unbalanced (stereo pair)
Maximum Input Level: +12 dBu, ±0.5 dBu
Main Outputs
Type: XLR Male, balanced
Maximum Output Level: +24 dBu, ±0.5 dBu
Output Impedance: 100Ω
Mix Outputs
Type: ¼” TRS Female, balanced
Maximum Output Level: +18 dBu, ±0.5 dBu
Output Impedance: 100Ω
Headphone Output
Type: ¼” TRS Female, active stereo
Maximum Output: 100 mW/ch. @ 60Ω load
Frequency Response: 20 Hz – 20 kHz (± 0.5 dB)
THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd
System Crosstalk
Input to Output: -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
Adjacent Channels: -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd
Digital Audio and Control
ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
USB Recording Port: USB 2.0, Type-B
Network Control Port: RJ-45
AVB Audio Network Port: Locking XLR Ethernet
Internal Processing: 32-bit, floating point
Sampling Rate: 48 kHz, 44.1 kHz
A/D/A Bit Depth: 24
Reference Level for 0 dBFS: +18 dBu
Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
Clock
Jitter: <20 ps RMS (20 Hz - 20 kHz)
Jitter Attenuation: >60 dB (1 ns in, 1 ps out)
Power / Environmental
Connector: IEC
Input-Voltage Range: 90 to 230 VAC (±10%)
Power Requirements (continuous): 85W
Recommended Ambient Operating Temperature: 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Physical
Height: 1.75” (45mm)
Width: 19” (483mm)
Depth: 12” (305mm)
Weight: 8.6 lbs. (3.9 kg)
| UPC | 673454005848 |
|---|
